Economical Painted Steel Floor Scales for Basic Industrial Applications

• The VE is ruggedly constructed and includes an epoxy painted steel frame, an ABS plastic indicator, IP65 sealed stainless steel junction box and IP67 sealed load cells.
• With a rechargeable lead acid battery included with each VE, position the floor scale freely in the workspace, without having to be forced to work near an outlet.
• Painted steel ramps are available to be added to any VE platform, which provides bottom support ribs that prevent the platform from bending under heavy loads.

The VE Series of Floor scales are the right choice for your basic dry weighing needs in industrial and commercial applications. Coupled with corresponding ramps, mounting accessories and T31P indicator, the VE Series offer a unique combination of value, quality and dependability that your company can rely on.

Applications

Weighing, Parts Counting

Display

Backlit liquid crystal display (LCD)

Operation

AC adapter (included) or rechargeable battery (included)

Communication

Easy access communication port with RS232 interface (included)

Construction

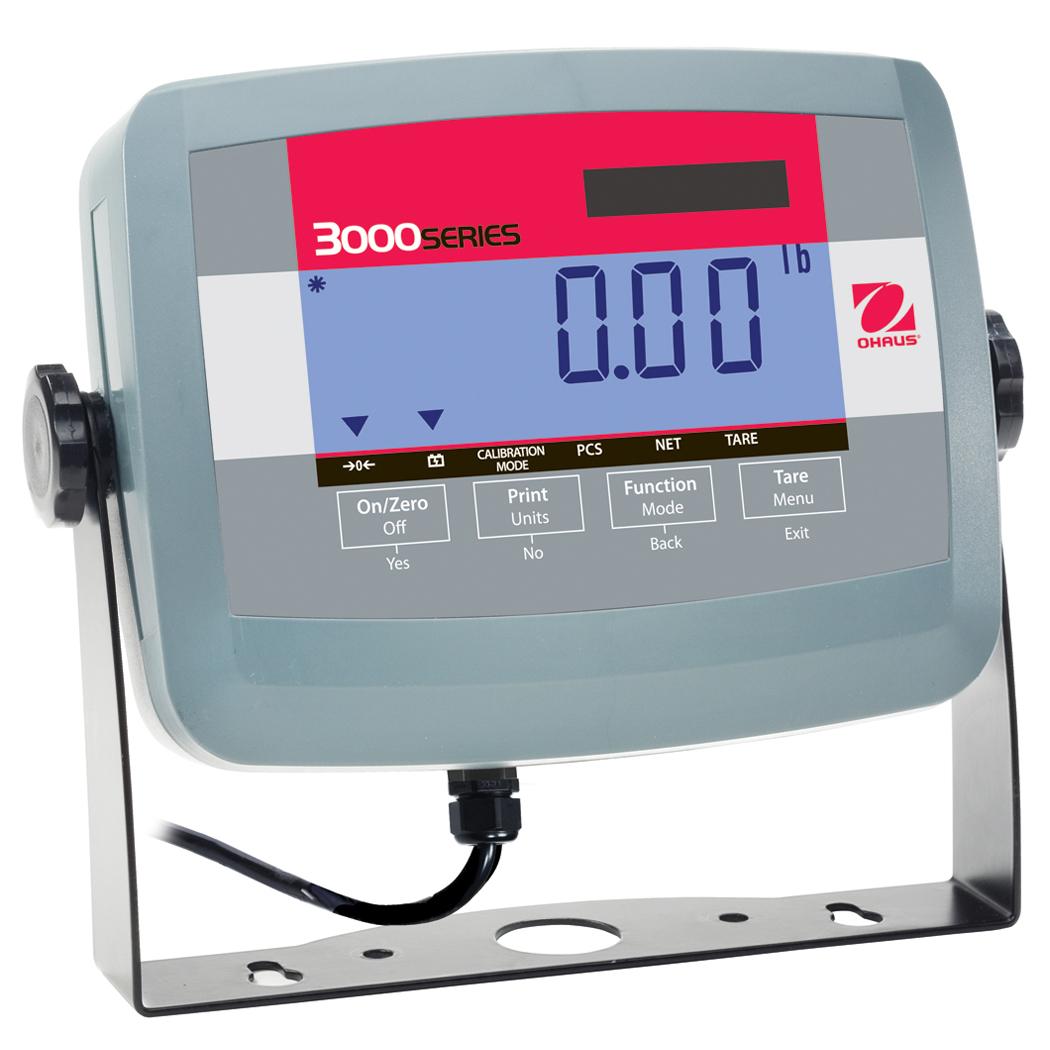

ABS plastic indicator, 5mm fixed top plate, black treaded painted steel platform, IP65 stainless steel junction box with side access, 4 x H8C IP67 OIML R60 alloy steel load cells, two carbon steel eye bolts, available painted steel or stainless steel ramp kit and wall mount bracket kit (accessories sold separately)

Design Features

125% overload protection
